browser

Interactive Chromium sessions on the iii engine bus. Agents start a session, read the page as an accessibility-tree outline, click and type against element refs, and read the page's own console and network history back as data. The single most important thing it gives you: "why is my dev server page blank?" becomes answerable, because the page's console errors are one browser::console::read away. The console worker adds the human window: a live Browser page with a streaming viewport (Chromium-pushed screencast frames), the console feed, and click-to-pick elements into chat.

It also carries a native Rust scraping surface, browser::*: HTTP and browser fetching, screenshots, persistent sessions and BFS crawling, plus CSS/XPath/regex queries, element search and HTML→Markdown that run over any HTML string with no browser at all. See Scraping and HTML parsing below.

In the console

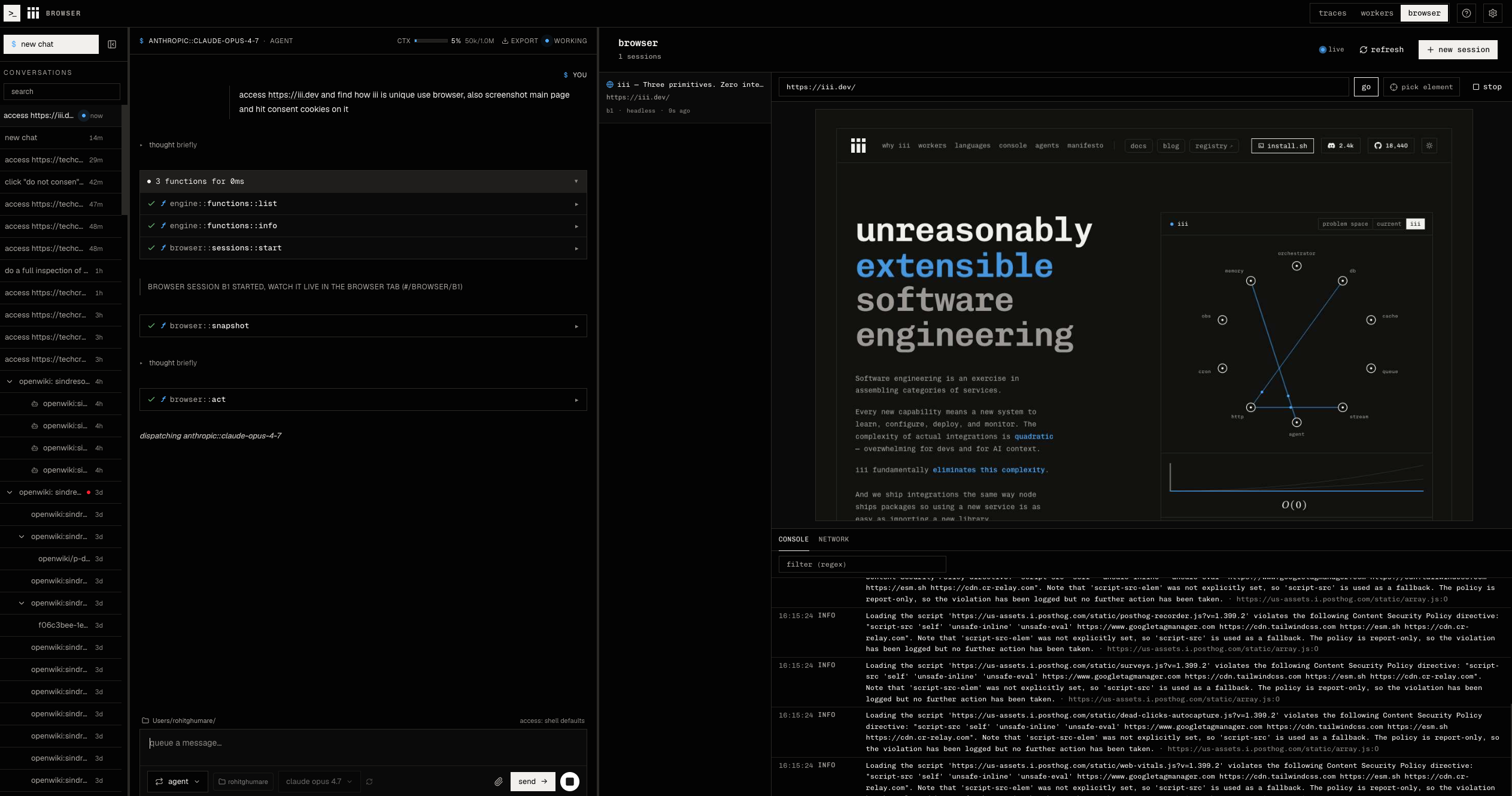

An agent reads a page as an accessibility outline (browser::snapshot) while you watch the live viewport and console feed:

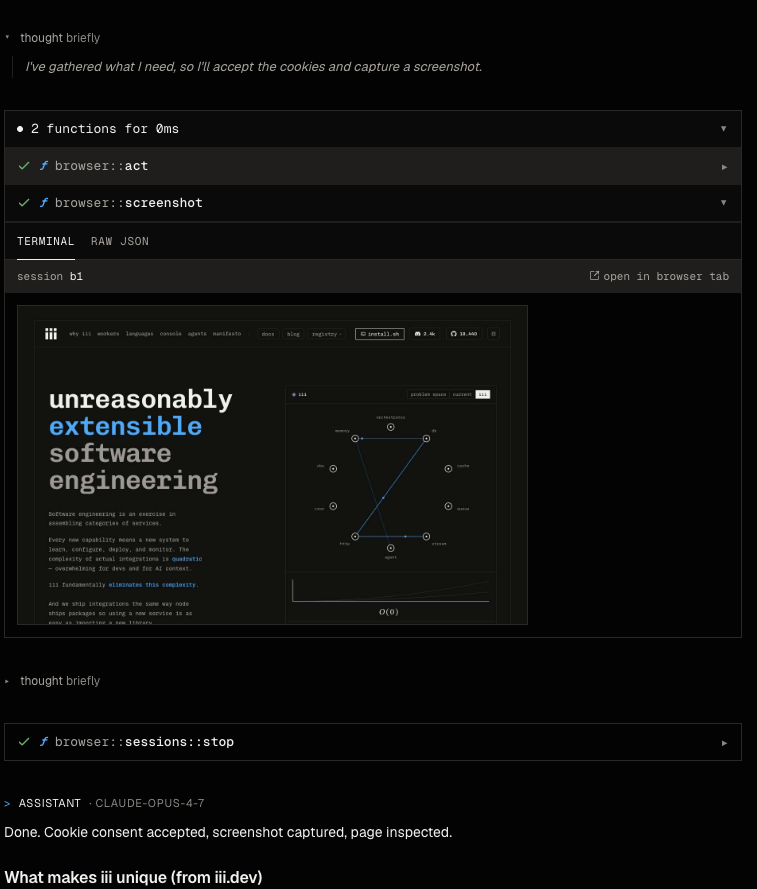

browser::screenshot renders the captured image inline in the chat card:

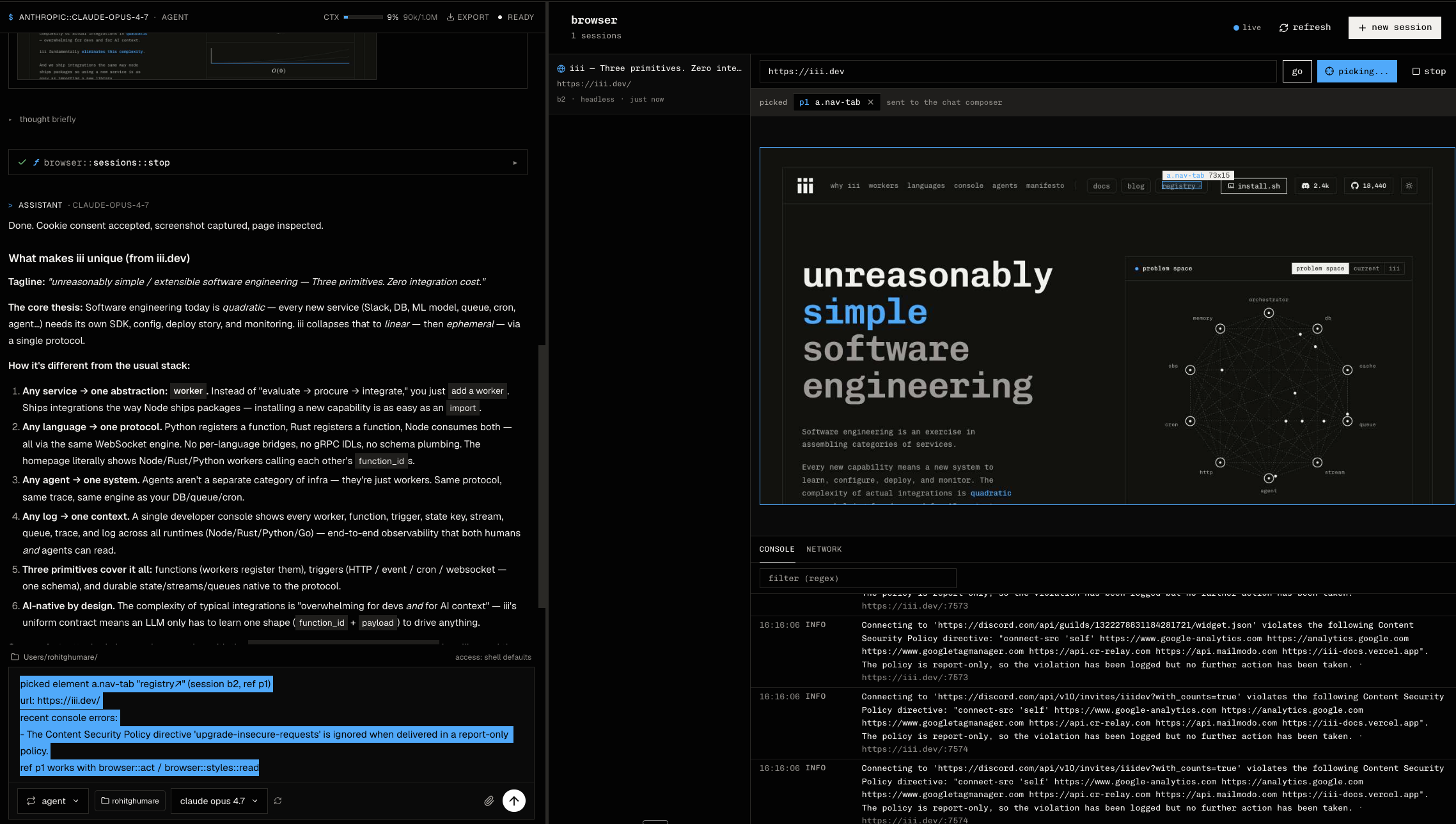

Pick mode highlights the element under the cursor and drops it into the chat composer as an actionable ref:

Install

iii trigger compose::add worker=browser

iii trigger compose::add resolves the worker and its dependencies, writes exact declarations to worker-compose.yaml, and reconciles the Compose project. The worker drives a Chromium/Chrome already installed on the machine; point executable at a specific binary if auto-detection picks the wrong one.

To watch sessions live, pick elements into chat, and follow the agent's browsing from a UI, add the console worker as well:

iii trigger compose::add worker=console

Quickstart

Start a session, read the page, act on it, then read the console:

use iii_sdk::protocol::TriggerRequest;
use iii_sdk::{register_worker, InitOptions};
use serde_json::json;

#[tokio::main]
async fn main() -> anyhow::Result<()> {
    let iii = register_worker("ws://localhost:49134", InitOptions::default());

    let started = iii.trigger(TriggerRequest {
        function_id: "browser::sessions::start".into(),
        payload: json!({ "url": "http://localhost:3000" }),
        action: None,
        timeout_ms: Some(30_000),
    }).await?;
    let session_id = started["session_id"].as_str().unwrap();

    // The page as text: an a11y outline with [ref=eN] handles.
    let snapshot = iii.trigger(TriggerRequest {
        function_id: "browser::snapshot".into(),
        payload: json!({ "session_id": session_id }),
        action: None,
        timeout_ms: Some(15_000),
    }).await?;
    println!("{}", snapshot["tree"].as_str().unwrap());

    // What did the page log? Errors only, no dump.
    let console = iii.trigger(TriggerRequest {
        function_id: "browser::console::read".into(),
        payload: json!({ "session_id": session_id, "level": "error" }),
        action: None,
        timeout_ms: Some(10_000),
    }).await?;
    println!("{console:#}");
    Ok(())
}

The rest of the surface: browser::act (click/hover/type/press/scroll by ref or coordinates, left/right/middle and double-click), browser::evaluate (JS expression), browser::screenshot (viewable JPEG), browser::history (back/forward/reload), browser::history::list (visited pages for a history panel), browser::find-in-page (find bar: highlight matches, step next/previous), browser::zoom (page zoom 50-200 %), browser::pdf (print the page to a PDF), browser::downloads::list / browser::download / browser::download::remove (files the session downloaded), browser::clear-data (cookies, cache, storage), browser::resize (live viewport size / device presets), browser::cookies::list / set / clear (import a cookie file), browser::network::read (requests + failures), browser::dom::read (DOM tree with refs), browser::styles::read / browser::styles::write (computed styles + live inline edits, the design panel backing), and browser::sessions::list / browser::sessions::stop. Function ids and schemas live in the code and iii worker info browser.

File transfer functions:

Function	Purpose
browser::downloads::list	List files the session downloaded
browser::download	Read one recorded download as base64
browser::download::remove	Delete and forget one recorded download
browser::upload	Attach up to eight base64 files to exactly one input[type=file] selected by CSS

Beyond single actions: browser::execute runs a multi-step async script in the page — top-level await, log(...), sleep(ms), waitFor(selector), and a state object that persists across execute calls for the session — so one call replaces a chain of act/evaluate round-trips. browser::snapshot accepts diff: true to return only what changed since the previous snapshot, and reports the document generation its refs belong to (ref names are unique per snapshot and fail closed when stale, never resolving to a different element). browser::sessions::start accepts read_only: true for inspection-only sessions where act/evaluate/execute/styles::write are rejected. browser::doctor reports the environment — detected Chromium, version, capacity — with an enable_how string for anything degraded.

browser::sessions::attach binds a session to an already-running browser over CDP (start Chrome with --remote-debugging-port) instead of launching one, so it reaches the real profile with its logins and extensions. It opens a fresh tab the session owns, or adopts an existing tab by URL substring and releases it untouched on stop; browser::tabs::list enumerates a running browser's tabs. Attach reaches logged-in state, so it is off unless allow_attach is set in config, and adoption is exclusive per tab.

browser::handoff pauses a session for a step only a human can do (CAPTCHA, 2FA, payment): it mounts an in-page continue banner and blocks the call until the human clicks it, a browser::handoff::confirm call resolves it, or the timeout elapses, emitting browser::handoff-requested for the console to surface. Human acknowledgment is not proof, so the caller verifies the expected page state after it returns.

browser::recording::start / browser::recording::stop capture a session's live viewport to a webm or mp4 file by piping the screencast through ffmpeg (turning screencast on if needed); stop returns the path, duration, and frame count. While screencast is active a human watching the viewport also sees a ghost cursor following the agent's clicks and a session-status badge; both are fixed-position in-page overlays that never touch page content. browser::doctor reports whether ffmpeg (recording) and attach mode are available.

Scraping and HTML parsing (browser::*)

The worker also ships a native Rust port of the scrapling worker's surface: 19 functions covering HTTP and browser fetching, screenshots, persistent sessions, crawling, and — the part that needs no browser at all — parsing HTML you already have.

Start with the parse functions: they work on any HTML string with no browser or network. Adaptive CSS/XPath/extract calls are the exception to statelessness: they persist relocation identities in the configured SQLite database. They pair naturally with the session functions above (navigate, read the page, then parse it), but they don't need one.

iii trigger browser::css --payload '{
  "html": "<ul><li><a class=\"product\" href=\"/sku/1\">Widget</a></li><li><a class=\"product\" href=\"/sku/2\">Gadget</a></li></ul>",
  "query": "a.product",
  "attr": "href",
  "first": true
}'
# → { "result": "/sku/1" }

first defaults to false, in which case result is an array of every match instead of just the first.

iii trigger browser::extract --payload '{
  "html": "<div class=\"card\"><h3>Widget</h3><span class=\"price\">$19.99</span><a href=\"/sku/1\">buy</a></div>",
  "selectors": [
    { "name": "title", "css": "h3" },
    { "name": "price", "css": ".price" },
    { "name": "url", "css": "a", "attr": "href" }
  ]
}'
# → { "extracted": { "title": "Widget", "price": "$19.99", "url": "/sku/1" } }

The 10 parse functions: extract, css, xpath, regex, find, find-by-text, find-by-regex, find-similar, describe, to-markdown. Non-adaptive parsing has no operator-tunable defaults. The fixed limit, find / find-by-text / find-by-regex capping at 100 items per call (limit clamps to [0, 100]), mirrors the python worker's hardcoded cap.

Fetching, sessions and crawl

Nine more functions go out to the network. They share one response envelope — {status, url, headers, cookies, encoding} plus, on request, extracted (from selectors), content+format (markdown/text) and html — so the parse layer above is reachable inline, without a second call.

Three fetch tiers, cheapest first; escalate only when the cheaper one fails:

	engine	use when
fetch	safe: reqwest/rustls; compat: frozen curl-impersonate	static pages, APIs — no browser, fastest
dynamic-fetch	frozen Chrome over raw CDP	the page needs JavaScript to render
stealthy-fetch	frozen Chrome with the Patchright command/launch sequence	the site sniffs for automation

iii trigger browser::fetch --json '{
  "url": "https://example.com/",
  "selectors": [{ "name": "title", "css": "h1" }],
  "format": "text"
}'
# → { "status": 200, "url": "...", "extracted": { "title": "Example Domain" }, ... }

All three take a single url or a bulk urls list (bulk returns {results: [...]}, where a failed URL contributes {url, error} instead of sinking the batch). dynamic-fetch and stealthy-fetch additionally accept wait_selector (+ wait_selector_state), network_idle, and wait.

browser::screenshot-url captures a page as image content blocks the console renders inline — downscaled to 1024px wide and split into at most six 1536px tiles, with the caption saying so when a page is taller than that.

session-open / session-fetch / session-close / session-list keep state in a private Scrapling registry. HTTP sessions retain one cookie jar/transport; dynamic and stealthy sessions retain one browser process and context. All use UUID4 hex ids and serialize requests FIFO per session. They never appear in browser::sessions::list, and interactive ids are not accepted. One-shot browser calls get a fresh process/profile; retries get a fresh page in that process. Compat mode supports request proxies, remote cdp_url, and solve_cloudflare on stealthy calls.

crawl walks links breadth-first from start_urls, extracting per page. It stays on the seed domain by default (www. folded), strips URL fragments when deduping, and stops at max_pages (20) or max_depth (2). Every page is emitted on a stream; the RPC response carries only a ≤10-item sample plus the stream name and group id to read the rest with stream::on.

These functions take a caller-supplied URL, so they are an SSRF surface. Safe mode rejects caller proxies and checks every connection against private, loopback, link-local (including cloud metadata), CGNAT, multicast and reserved ranges. Set browser.scrapling.allow_loopback: true to scrape a local dev server; every other private range stays blocked. Compat mode intentionally reproduces the standalone worker's unrestricted network behavior and should be enabled only for trusted calls. All nine functions remain at the needs_approval default in iii-permissions.yaml, unlike the ten parse functions.

The guarantee differs by tier, and the difference is worth knowing:

• fetch (HTTP) — checked before every hop. Redirects are followed by hand precisely so each hop is validated before the request is made, and each connection is pinned to the address that was validated, closing the DNS rebinding window between check and connect. Authorization and Cookie are dropped on a cross-origin redirect, as curl has done since CVE-2018-1000007.
• Browser tiers — checked at the socket boundary. Safe-mode Chrome is forced through an in-process HTTP/CONNECT gate. The gate resolves, checks, and pins every destination before dialing, including redirect destinations; direct bypass, QUIC and WebRTC are disabled.

Two more safe-mode limits worth stating: response bodies are bounded at 32 MiB whether or not the server declares a content length, and a fetch call is capped at three times its timeout in total. Compat mode preserves the frozen worker's unbounded response and retry/redirect quirks.

Compatibility modes and certification

Request/response schemas are golden-pinned to the frozen Python wrapper apart from provider-id mapping. Native calls use browser::; Python keeps scrapling::. Python scrapling::screenshot maps to native browser::screenshot-url, while browser::screenshot remains the interactive session screenshot. Crawl streams default to browser::crawl.

security_mode: safe is the default. It keeps SSRF checks and resource ceilings, refuses network options the safe engine cannot enforce, rejects verify: false, and bounds adaptive storage. security_mode: compat is only eligible on Tier-1 Linux x86_64/aarch64 builds produced with the certified curl-impersonate and Chromium artifacts. Other targets reject compat instead of silently degrading. Eligibility is not a claim that an arbitrary local build is certified: builds without the frozen artifacts return a capability error, and callers should keep using safe mode or the standalone worker.

The parser/query core, CSS-to-XPath translation, XPath 1.0 evaluation, Python regex behavior, Markdown conversion, selector generation, and adaptive relocation are repository-owned compatibility implementations covered by exact differential fixtures. Adaptive queries persist element identities in SQLite at adaptive_storage_path; parse functions remain auto-allowed, so operators should treat that path as durable worker state. Safe mode enforces adaptive_max_bytes (256 MiB by default) and rolls back a write that would exceed it. Compat mode keeps the frozen worker's unbounded behavior.

Safe HTTP uses the bounded native engine. Compat HTTP is linked to the frozen curl-impersonate archive; compat browser calls use the certified Chrome build through raw pipe/WebSocket CDP and reproduce the frozen Playwright/Patchright sequences. Persistent browser sessions, proxy rotation, remote CDP, Cloudflare handling and screenshot transforms use that same private runtime. Certified builds fail when pinned artifacts are absent or mismatched; there is no silent fallback from compat to safe.

The standalone worker remains the oracle and production fallback during rollout. Migrate calls to browser:: (with screenshot mapped to browser::screenshot-url) only after draining its sessions, then compare both providers through one stable release and at least 30 days without an untriaged mismatch. Removing the standalone worker is a separate change.

Regenerating the parse goldens

tests/golden/schemas/browser.*.json and tests/golden/behavior/** are written only by scripts/gen_goldens.py, run against the reference Python implementation — never by UPDATE_GOLDENS=1, so a passing test always means "Rust still agrees with Python":

~/.iii/managed/scrapling/usr/local/bin/python3.12 scripts/gen_goldens.py schemas
~/.iii/managed/scrapling/usr/local/bin/python3.12 scripts/gen_goldens.py behavior

Configuration

Stored in the configuration worker under the browser key. Existing interactive-browser settings retain their current behavior. Scrapling settings live in an isolated nested block: bulk/default policy can be read per call, while the session cap, idle timeout, and adaptive database path are snapshotted at worker startup. Restart after changing a startup-snapshotted value.

browser:
  executable: ''            # empty = auto-detect Chrome/Chromium/Edge
  user_data_dir: ''         # set a path to persist cookies/logins across sessions
  headless: true            # false shows a real window locally
  max_sessions: 4           # concurrent Chromium processes
  console_buffer: 500       # per-session console ring buffer (entries)
  network_buffer: 500       # per-session network ring buffer (entries)
  viewport_width: 1280
  viewport_height: 800
  default_timeout_ms: 30000 # navigation/act/evaluate default
  max_timeout_ms: 120000    # ceiling; caller timeout_ms clamped DOWN to this
  idle_stop_ms: 300000      # stop sessions idle this long; 0 disables
  screenshot_quality: 60    # JPEG quality 1-100
  allowed_schemes: [http, https, file]  # `file` lets a local document be rendered; see below
  max_snapshot_nodes: 2000  # a11y outline size cap
  default_origin_policy:    # omitted fields default to allow
    access: allow
    downloads: allow
    uploads: allow
    scripting: allow
  origin_policies:
    'https://app.example.com:8443':
      uploads: deny
    app.example.com:
      scripting: deny
  allow_history_access: true
  allow_cookie_import: true
  allow_attach: false       # true = allow sessions::attach into a running browser's real profile

  scrapling:
    security_mode: safe        # safe | compat; compat is Tier-1 certified builds only
    chromium_executable: ''    # certified Chrome path; empty = discovery
    allow_loopback: false      # true = permit 127.0.0.1 / ::1 in outbound calls

    defaults:
      impersonate: chrome
      headless: true
      network_idle: false
      proxy: ''
      include_html: false

    max_bulk_concurrency: 5
    max_sessions: 8
    session_idle_timeout_s: 900
    adaptive_storage_path: data/scrapling/elements.db # relative to III_COMPOSE_DIR
    adaptive_max_bytes: 268435456 # safe only; compat preserves unbounded oracle behavior

file is on the default scheme list so a local document can be opened and rendered, which is how document::ocr gets pixels out of a scanned PDF. It is worth knowing what that permits: navigation is not checked against a session's filesystem scope the way the workers that read files directly are, so anything that can reach browser::navigate can open any file this process can read. Narrow the list on a shared machine.

Origin policy keys do not accept wildcards. An exact origin, including its scheme and non-default port, wins over a bare host; a bare host matches any scheme or port. Origin keys are URL-normalized before matching, including lowercased hosts and removal of explicit default ports; bare-host keys match case-insensitively. URLs with no matching key use default_origin_policy. Each policy field defaults to allow when omitted.

Sessions started while any origin policy is configured reload the policy on every top-document request, so edits apply to their later navigations. A session started with no origin policy does not enable interception; adding the first policy later applies the navigation gate to new sessions.

The compatibility fields are part of the stable configuration surface. Non-Tier-1 or artifact-free builds retain safe mode and reject compat explicitly instead of approximating it.

The declared production envelope is 4 GiB memory and 2 CPUs. Tier-1 release validation budgets for five concurrent browser processes; that is a release test envelope, not permission to exceed configured session caps.

Custom trigger types

Sibling workers (and the console UI) can subscribe to session activity. All bindings accept an optional { "session_id": "..." } filter.

Trigger type	Fires when	Payload to subscribers
browser::session-started	A session is up and ready	{ session_id, url, headless, timestamp }
browser::session-stopped	A session ended	{ session_id, reason: "stopped" | "idle" | "crashed", timestamp }
browser::navigated	The page committed a navigation	{ session_id, url, timestamp }
browser::console-event	A console/log/exception entry was captured	{ session_id, entry }
browser::picked	The human picked an element in inspect mode	{ session_id, element, timestamp }
browser::handoff-requested	A session paused for a human step (CAPTCHA, 2FA, payment)	{ session_id, handoff_id, instructions, timestamp }

browser::console-event is high-volume; bind it with a session_id filter and treat browser::console::read as the durable record. browser::picked elements carry a ref that browser::act accepts directly, so a human pick flows straight into agent action.

Element picking

browser::pick::start puts the page in DevTools inspect mode (native hover highlight); the human's click resolves to tag, attributes, outer HTML, text, bounds, and recent console errors, emitted as browser::picked. The pick, hint, screencast, and frame functions are internal: console-UI plumbing, not agent surface, and they stay out of agent tool lists.
